Part Number: WA-0065

Features

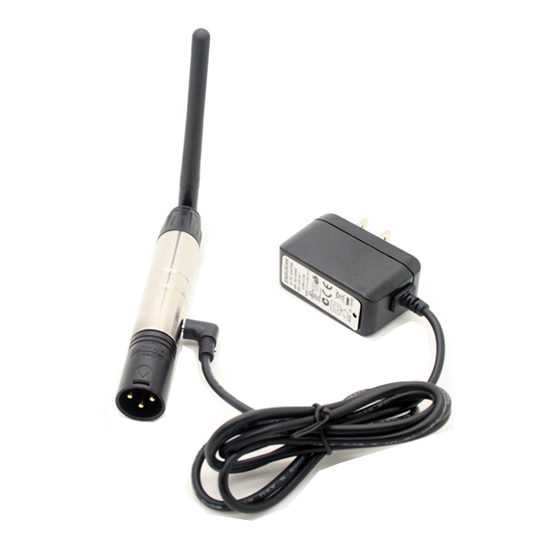

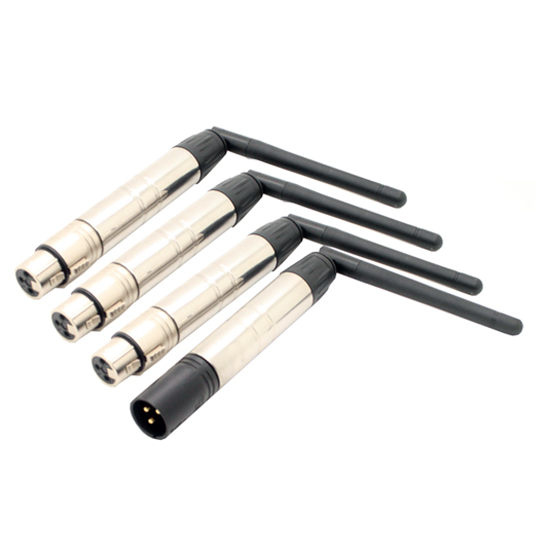

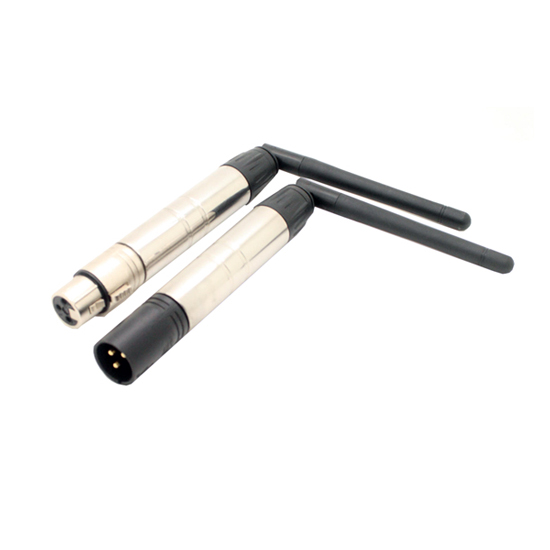

DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data (generated by console)

by wireless way.No time delay when signal data is transmitting, signal data is real time and reliably
This product adopts a 2.4G ISM frequency section.High effective GFSK modulate,communication design
126 channels jumping frequency automatically, high anti­jamming ability.

Specification:

1. 2.4G wireless DMX512 R/T
2. 126 channels jumping frequency automatically, high anti-jamming ability. to ensure works reliability
3. 7 groups ID code settable,User can use 7 groups individual wireless net without any interfere
4. each other in the same place...(Tricolor LED displaying Indicators)

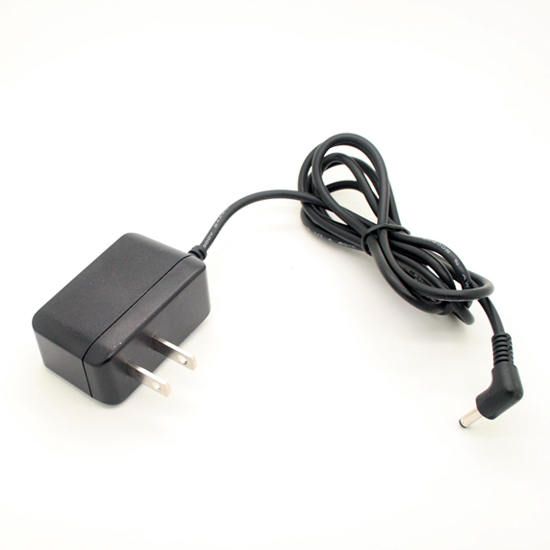

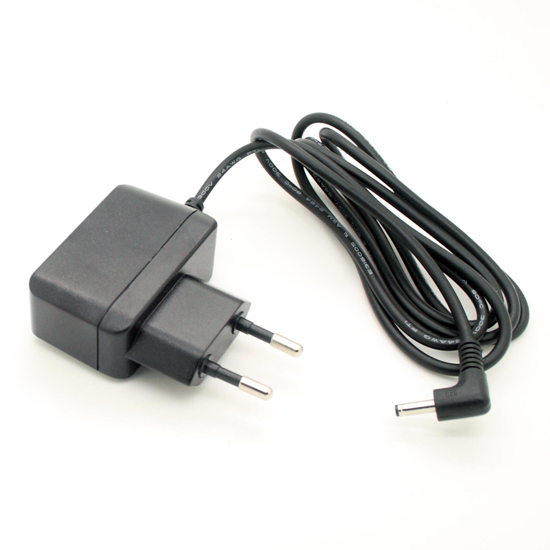

5. Input voltage:5VDC 500mA MIN
6. Communication distance: 400M (visible distance)
7. Work frequency section: 2.4G ISM,126 channels.frequency section
8. Max transmitting power rate:20dBm

Operating manual： ID code and LED color corresponding relationship

1：RED
2：GREEN
3：RED+GREEN
4：BLUE
5：RED+BLUE
6：GREEN+BLUE
7：RED+GREEN+BLUE

1. Press momentary switch above the side led indicator to indicate ID setting
2. Press again to set IC Œto the color ID desired,adding 1 each time you press the
    switch will advance the color ID code.
3. Working condition LED constant lit upNo DMX or wireless signal. Red LED flash：
   Transmitting. Green LED flash receiving
4. RF frequency 2.400 - 2.525G Œtotal 126 channelsï Œit's searching automatically,
5. ID Code  groups ID code，press 'KEY' for settingï Œit only can work under same
    ID code of transmitter and receiver. (Same LED Color)
